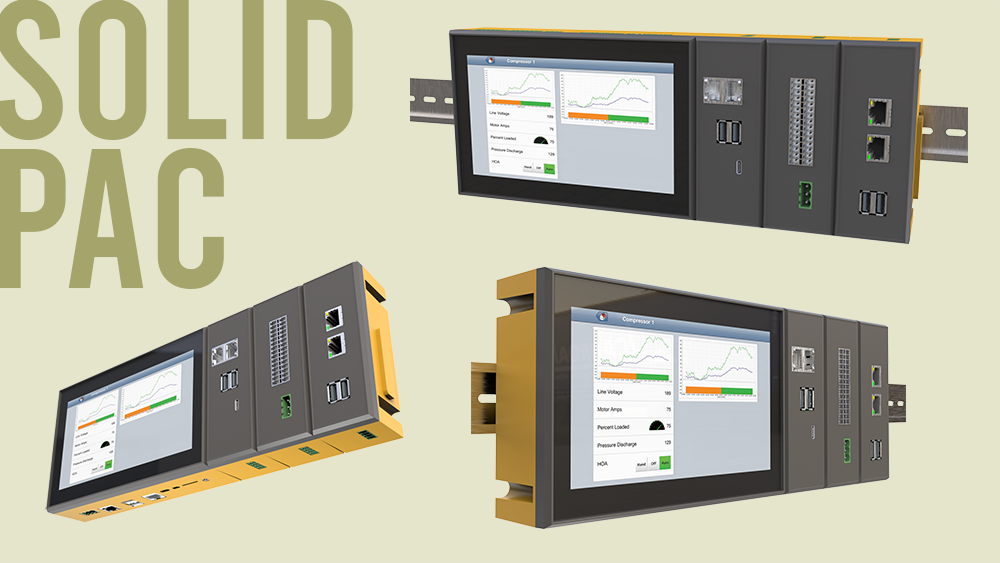

Product Description

Introducing Solid PAC, your dependable partner in automation, designed to offer essential automation capabilities at an affordable price. This low-end Programmable Automation Controller is perfect for small to medium enterprises stepping into automation or for applications that require reliable, static AI model implementation without the complexity of real-time learning systems.

Equipped with a cost-effective processor, the Solid PAC provides efficient handling of pre-trained AI models, ensuring stable and consistent performance. Its compact and energy-efficient design makes it suitable for various applications, including simple robotic systems, process control, and basic data handling tasks. The Solid PAC is built to integrate effortlessly with standard industrial components, offering a straightforward setup and maintenance experience.

Key Features

Cost-effective processing capabilities for static AI applications.
Supports pre-trained AI models with offline loading.
Energy-efficient and compact design.
Easy integration with standard industrial components.
Ideal for SMEs or entry-level automation needs.

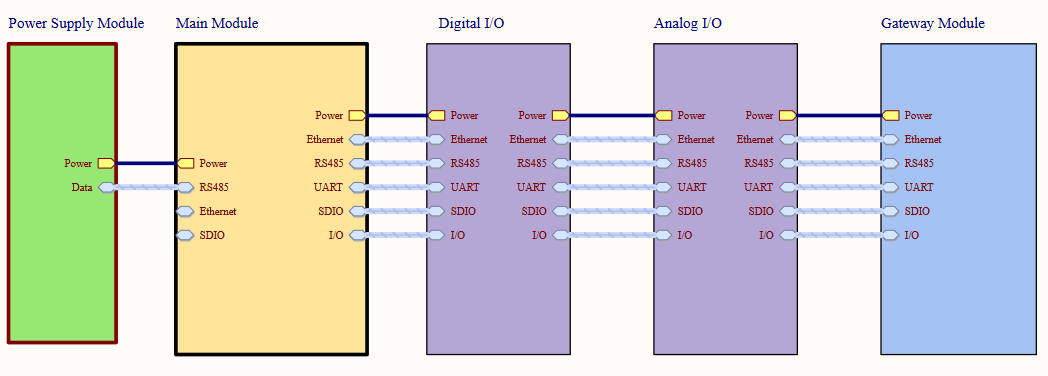

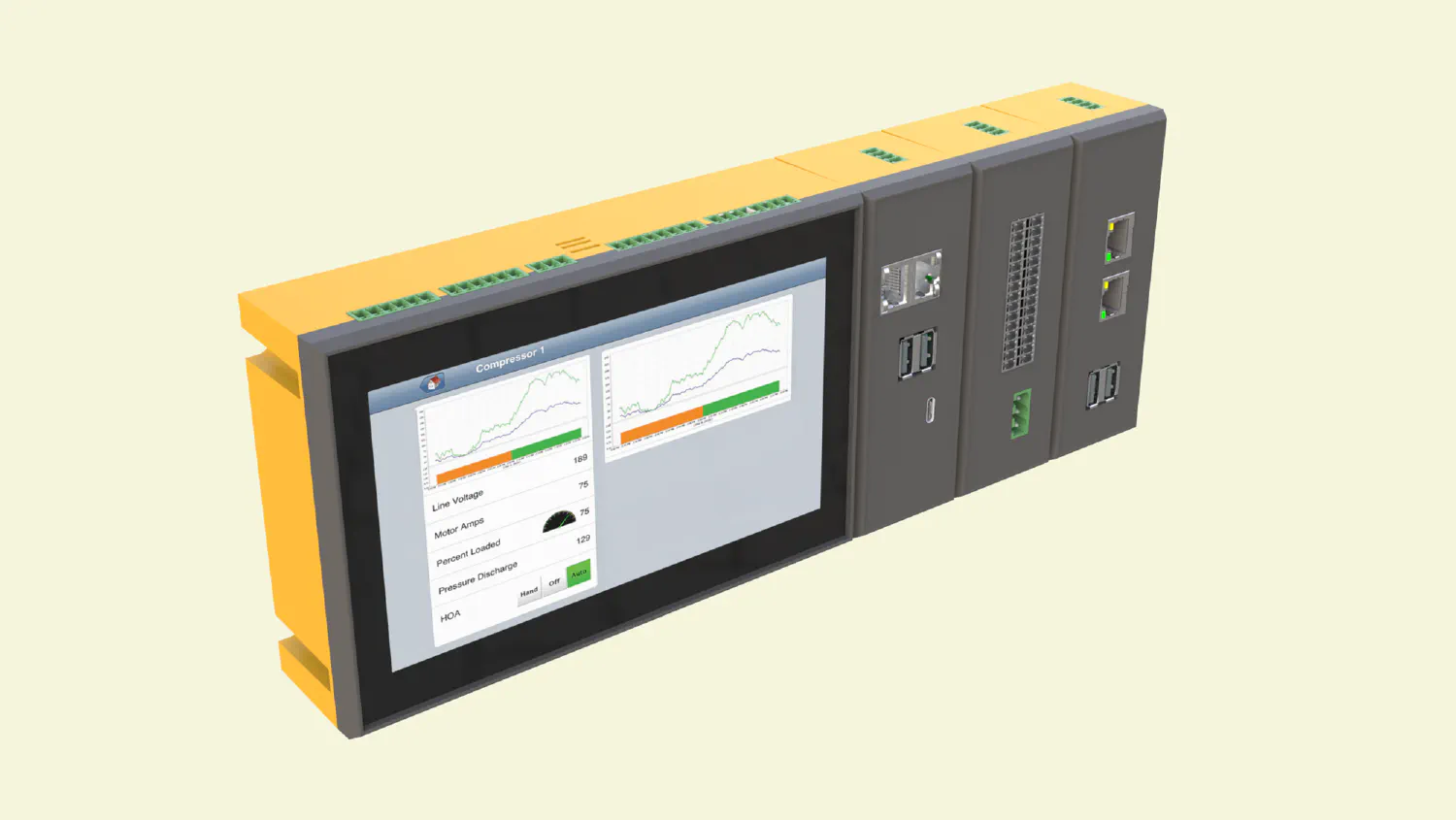

Solid PAC main unit is designed based on the ARM Cortex processors with Linux and Android OS. For the special cases where the user needs more I/O and ports, we have considered the extra ports on the side unit. One or more side units can be cascaded to the main unit to supply enough required I/O and communication ports like CAN Bus, ModBus, EtherCAT, RS232. We have designed Digital I/O and Analog I/O side units separately. We have shown the connection structure here:

Main Unit specifications

Option	Description
CPU	Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM	4GB LPDDR4 RAM
FLASH MEMORY	32GB eMMC flash memory
EXTERNAL STORAGE	MicroSD Card up to 512GB
OS	Linux, Android
AUDIO / BUZZER	Digital high-quality audio with internal 2W amplifier
DISPLAY	7.0-inch IPS LCD with capacitive touch screen
ETHERNET	2 × RJ45 Gigabit Ethernet PHY supporting IEEE 1588
WIFI	2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
BLUETOOTH	Bluetooth 5.0, BLE
GNSS	Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS (Optional)
NETWORK TECHNOLOGIES	Worldwide LTE-4G
USB	2 × USB 2.0 Host - 1 × USB Device
HDMI	HDMI 2.0 ports (up to 4Kp60 supported)
LED INDICATOR	LED indicator for power – status
SERIAL PORT	2 × RS232 - 1 × RS485 - 1 × CAN
DIO	4 × Digital Input - 4 × Digital Output
POWER SUPPLY	9-36 VDC
PROTECTION OF POWER SUPPLY	Reverse polarity protected, overvoltage protection

Digital I/O Side unit specifications

Option	Description
Number of DIO channels	32 configurable Input/Output
Power supply	9-36 VDC
Max Power consumption	2.0 Watt
Input current limitation	1.0 mA (at 24 V power supply)
Input thresholds	EN61131-2 to Type I and III sensors
Input protection	Against overvoltage, negative voltages, burst, surge, ESD
Output type	Isolated digital output with high-side or push-pull drivers
Maximum current per output	100 mA (push-pull mode), 500 mA (high-side mode)
Output protection	Against short circuit, overload, negative voltages, burst, surge, ESD
Protection of power supply	Reverse polarity protected, overvoltage protection
Mounting	DIN rail mounting
Operating temperature	-40 °C to +85 °C

Analog I/O Side unit specifications

Option	Description
Number of AIO channels	4 Digital Input and 4 Digital Output
Power supply	9-36 VDC
Max Power consumption	8.0 Watt
Current measuring range	0-20 mA
Voltage measuring range	±10 V
Voltage output range	±10 V
Current output range	0-20 mA
Input type	differential 2-wire
Output type	single ended, common ground, short-circuit proof
Protection of power supply	Reverse polarity protected, overvoltage protection
Mounting	DIN rail mounting
Operating temperature	-40 °C to +85 °C
